Editing Text within SWF files!

Today I was faced with the problem of changing a string within an SWF file, though I took it more of as an interesting challenge.

A colleague of mine had compiled an SWF using Adobe Captivate – an educational material builder.

Unfortunately, some of the paths were hard-coded and hence it only worked correctly on his own laptop…and I was itching to test something out.

So what does someone do ?

1st Attempt: SWF Decompiler and Options

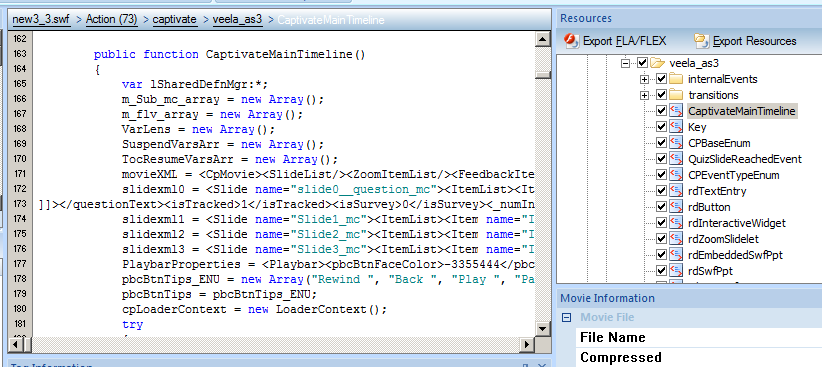

I opened up the file in SoThink SWF Decompiler and attempted to export as an FLV file.
As there was no actual flash version I decided to manually select the version.
An FLV file was created though the result was poor.

Following I exported the .as files and had a look at the various declarations and parameters for the timeline.

2nd Attempt: Hex editor

I opened the SWF file in the 01 hex editor and searched for the string I wanted to change.
To my surprise I found nothing until I realized SWF files come in two varieties: compressed and uncompressed.
For an intro on the topic have a look at: http://forum.cheatengine.org/viewtopic.php?p=1533490

Searching on the internet I found the CWS to FWS Flash file Decompressor which must be run on a linux install with perl to create an uncompressed SWF file.(http://zefonseca.com/cws2fws/)

Once the swf file was uncompressed suddenly ascii text was visible within the hex editor.

However, changing the number of characters resulted in a broken file.
Hence,  I came up with the solution to pad with spaces or other inconsequential characters e.g. “././.”  in order to maintain the same number of characters.

This worked as a quick solution. If anyone has found where the checksum or length is recorded it would be nice to know!

Thanks.
